Scenaria View 128

Scenaria View 128 delivers clear CT imaging across routine and advanced exams—cardiac CTA, dual energy, perfusion—with dose-saving Intelli IPV and an 80 cm gantry in a compact, three-module design.
Download Brochure
Download Data Sheet

Overview

Scenaria View employs 64 detector channels over 40 mm coverage and reconstructs up to 128 slices per rotation, pairing Intelli IPV iterative reconstruction for up to 83% dose reduction with HiMAR Plus metal artifact reduction. The 80 cm bore, 84 kW generator (up to 700 mA), and standard Auto Lateral Shift Table (±10 cm) improve patient positioning, throughput, and image quality while maintaining patient comfort. It is XR-29 Smart-Dose compliant and FDA-cleared for low-dose lung cancer screening.

Interested in this Equipment?

Contact us to learn more and discuss how this equipment can benefit your organization.
Request More Information

Main Features

AI-Enhanced Dose Reduction & Image Quality

Intelli IPV next-generation iterative reconstruction provides up to 83% dose reduction while preserving natural image texture and low-contrast resolution.

Optimized Patient Positioning

The Auto Lateral Shift Table (±10 cm) centers anatomy at iso-center for better spatial resolution and potential dose reduction, supported by multi-bow-tie filters.

Metal Artifact Reduction

HiMAR Plus minimizes metal-induced artifacts to enhance diagnostic visibility around implants and hardware.

Need help? Let’s Start A Conversation

Contact Us

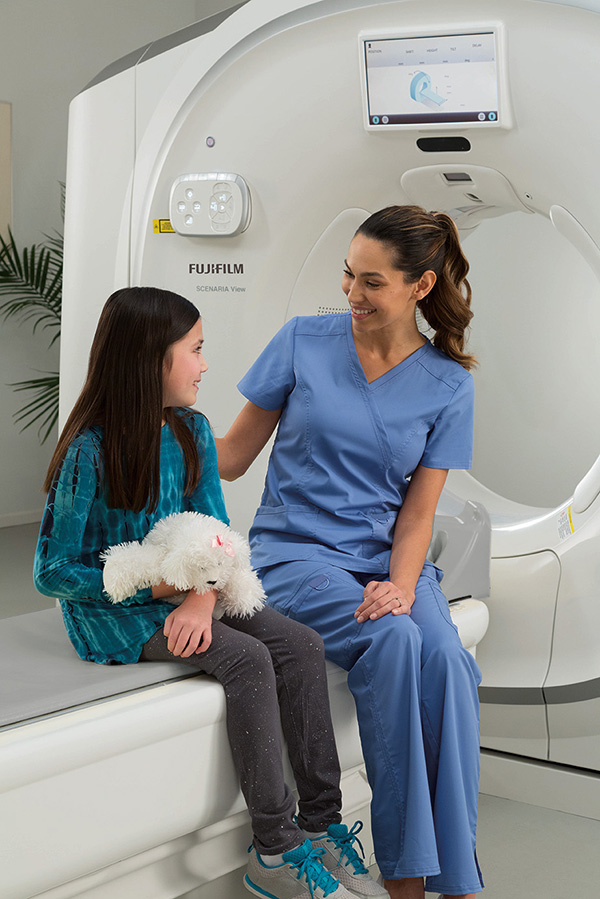

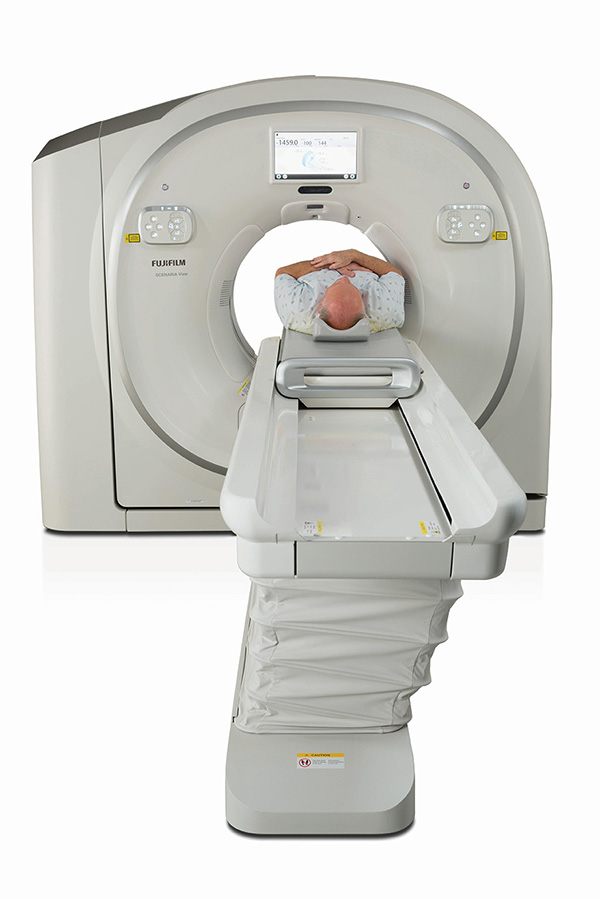

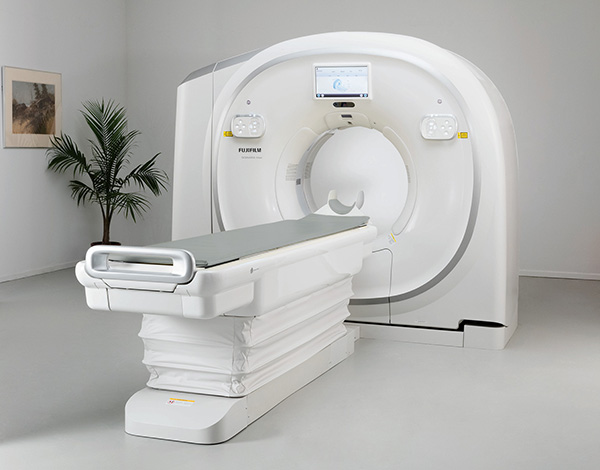

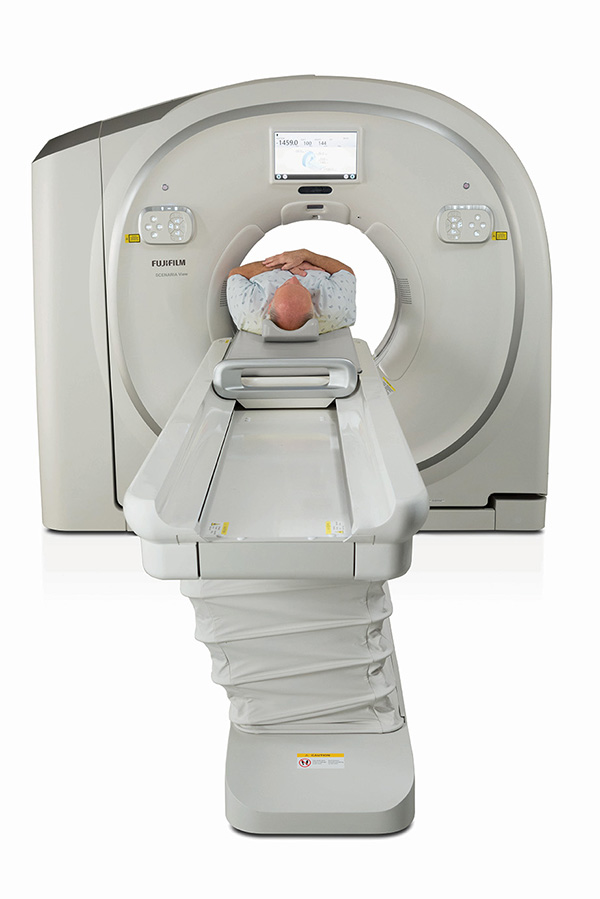

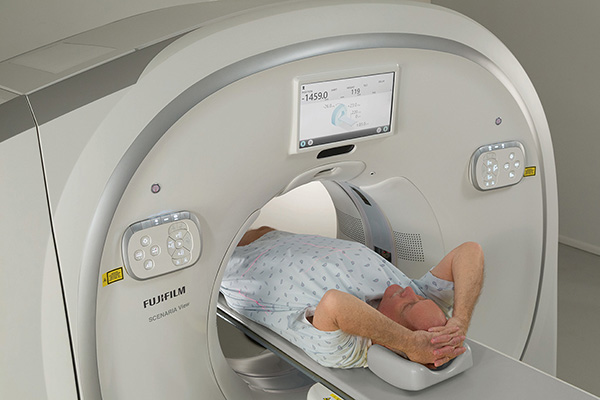

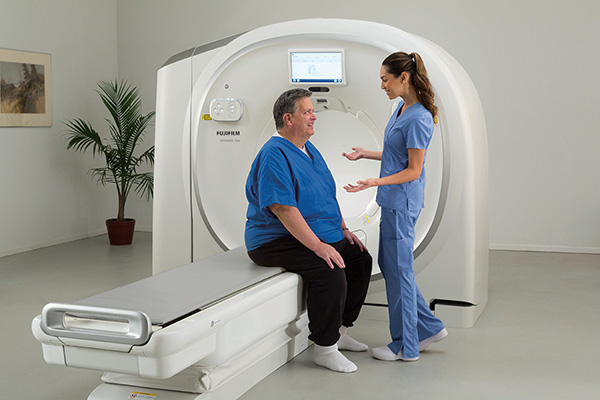

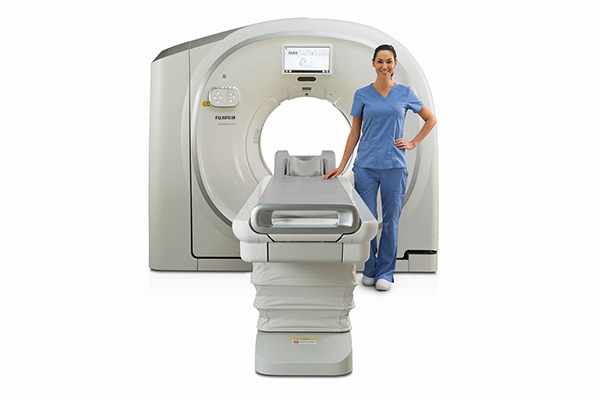

Product Images

Additional Information

Bore & Table: 80 cm gantry aperture; table capacity up to 550 lb (250 kg).

Power & Tube Current: 84 kW generator enabling up to 700 mA operation.

Acquisition & Speed: Up to 128 slices per rotation; typical 0.35 s rotation for high-speed scanning.

Workflow: SynergyDrive shortcuts (e.g., rapid registration and protocol selection) streamline scanning and reconstruction.

Dose Management: XR-25 Dose-Check, XR-29 Smart-Dose compliance; FDA 510(k) indication for low-dose lung cancer screening.

Advanced Apps: Extended coverage shuttle scanning (perfusion), cardiac CTA, dual-energy exams, and interventional CT.
